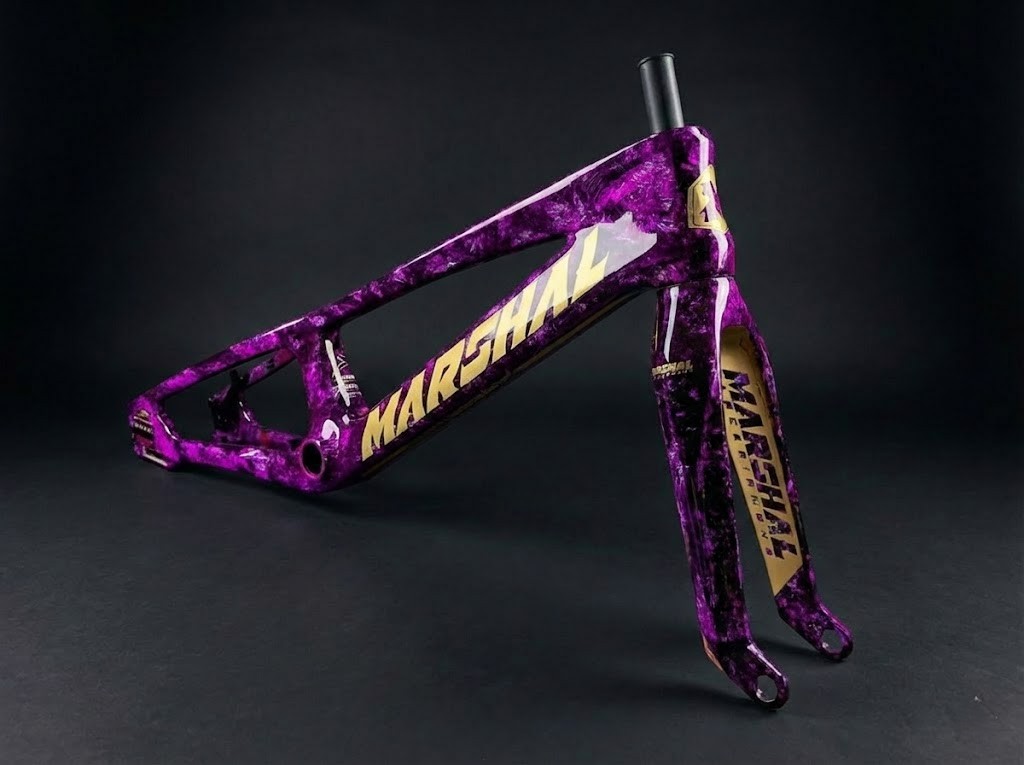

Frame & Fork carbon carbone “SR71-BLACKBIRD” | Purple
2,700.00$ TTC
SR71-BLACKBIRD – Carbon excellence without compromise
Designed with Japanese Toray T700 carbon fiber and reinforced with T1000 in critical areas, the SR71-BLACKBIRD frame delivers exceptional stiffness while maintaining a controlled weight.
The combination of 3K woven carbon and unidirectional UD carbon creates a structure that is ultra-rigid where performance demands it, and intentionally more flexible in strategic zones to absorb impacts, reduce vibrations, and limit the risk of sudden failure.
This controlled flexibility enhances riding comfort and significantly increases long-term durability.
Advanced fiber orientation at 0° / 20° / 45°, with up to 9 reinforcement layers, ensures stability, precision, and reliability even under extreme loads.
The frame features a patented half-moon rear dropout system, providing:
- perfect wheel alignment,
- superior lateral stiffness,
- fast and secure wheel removal,
- precise and consistent chain tension
Co-molded aluminum inserts guarantee long-lasting mechanical accuracy.
Lighter. Stiffer. Smarter.
A frame engineered for top-level performance.
Key Features
Patented ‘Semi-Circle System’: Provides a 50mm adjustment range across 6 positions for increased rigidity and precise setup without needing to adjust the rear wheel (4 positions in 10mm for Junior and Expert sizes)
Axle Compatibility: Works with 10mm (6 positions) or 15mm axles (4 positions – not compatible for junior and expert sizes). Available as an option.
Unbreakable Strength: The frame is reinforced at the dropout with 7075 aluminum for exceptional durability.
New Chain Tensioner: Ensures precise horizontal tension for a long-lasting chain.
Internal Cable Management: Features plastic guides for a clean and secure cable routing.
Maximum Gear Ratio: 52×18
Sold With the Frame
Option
Weight frame PRO XL = 1,560 Kg (+/- 2%) | 3.307 lbs (+/- 2%)
Tailles 20″
RIDER AREA Min
TT
CS min
CS max
BBH
SA
HA
OD
SPL
SP SIZE
HT
BB Type
Junior light
18.8″
478 mm
320 mm
352 mm
276 mm
70°
73°
intégré conique
OD 1-1/8″ – 1,5″
182 mm
27,2 mm
115mm
PRESSFIT
Expert +
19.7″
500 mm
320 mm
352 mm
276 mm
70°
73°
intégré conique
OD 1-1/8″ – 1,5″
182 mm
27,2 mm
115mm
PRESSFIT
Pro
20.5″
520,7 mm
360 mm
410 mm
11,5
292 mm
72,5°
74°
intégré conique
OD 1-1/8″ – 1,5″
175mm
27,2 mm
120mm
PRESSFIT
Pro XL
948 mm
21″
533,5 mm
360 mm
410 mm
11,5
292 mm
72,5°
74°
intégré conique
OD 1-1/8″ – 1,5″
175mm
27,2 mm
120mm
PRESSFIT
Pro XXL
961 mm
21,5″
546 mm
360 mm
410 mm
11,5
292 mm
72,5°
74°
intégré conique
OD 1-1/8″ – 1,5″
175mm
27,2 mm
120mm
PRESSFIT
Pro XXXL
989 mm
22″
558 mm
375 mm
425 mm
11,5
292 mm
72,5°
74°
intégré conique
OD 1-1/8″ – 1,5″
175mm
27,2 mm
120mm
PRESSFIT
Pro XXXXL
1002 mm
22,5″
570 mm
375 mm
425 mm
11,5
292 mm
72,5°
74°
intégré conique
OD 1-1/8″ – 1,5″
175mm
27,2 mm
120mm
PRESSFIT
Tailles 24″
RIDER AREA Min
TT
CS min
CS min
BBH
SA
HA
OD
SPL
SP SIZE
HT
BB Type
Cruiser
956 mm
21,25″
540 mm
380 mm
430 mm
12
305 mm
69,5°
73°
intégré conique
OD 1-1/8″ – 1,5″
232 mm
27,2 mm
120mm
PRESSFIT
Cruiser XL
974 mm
22″
558 mm
380 mm
430 mm
12
305 mm
69,5°
73°
intégré conique
OD 1-1/8″ – 1,5″
232 mm
27,2 mm
120mm
PRESSFIT
| Weight | 1.500 kg |
|---|---|
| Dimensions | 100 × 20 × 30 cm |
| Size frame |
JUNIOR Light – 18.8" ,EXPERT Plus -19.7" ,EXPERT XL ,PRO – 20.5" ,PRO XL – 21" ,PRO 2XL – 21.5" ,PRO 3XL – 22" ,PRO 4XL – 22,5" ,CRUISER – 21,25" ,CRUISER XL – 22" |
