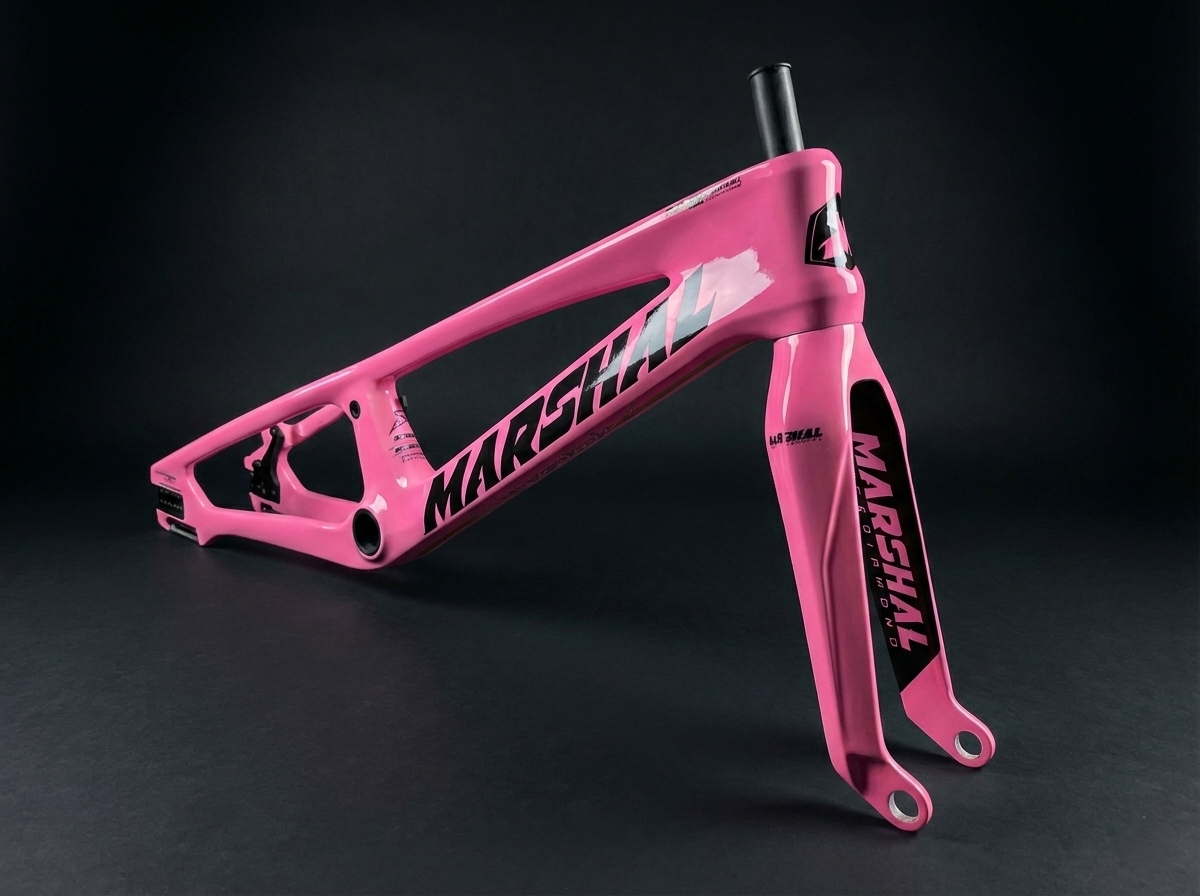

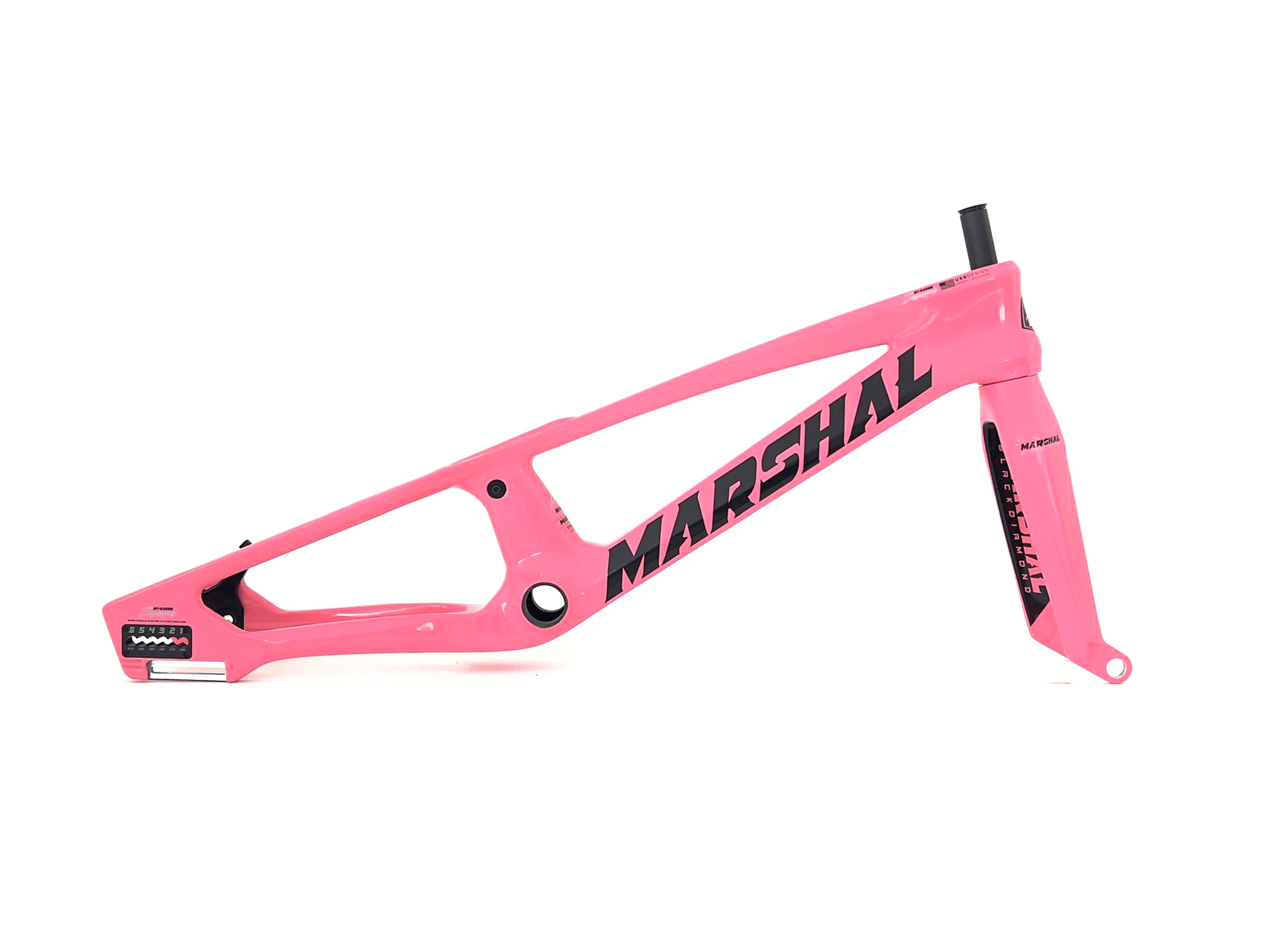

Frame & Fork carbon “SR71-BLACKBIRD” | Color Pink – END OF MARCH
2,700.00$ TTC
SR71-BLACKBIRD – Carbon excellence without compromise
Designed with Japanese Toray T700 carbon fiber and reinforced with T1000 in critical areas, the SR71-BLACKBIRD frame delivers exceptional stiffness while maintaining a controlled weight.
The combination of 3K woven carbon and unidirectional UD carbon creates a structure that is ultra-rigid where performance demands it, and intentionally more flexible in strategic zones to absorb impacts, reduce vibrations, and limit the risk of sudden failure.
This controlled flexibility enhances riding comfort and significantly increases long-term durability.
Advanced fiber orientation at 0° / 20° / 45°, with up to 9 reinforcement layers, ensures stability, precision, and reliability even under extreme loads.
The frame features a patented half-moon rear dropout system, providing:
- perfect wheel alignment,
- superior lateral stiffness,
- fast and secure wheel removal,
- precise and consistent chain tension
Co-molded aluminum inserts guarantee long-lasting mechanical accuracy.
Lighter. Stiffer. Smarter.
A frame engineered for top-level performance.
Key Features

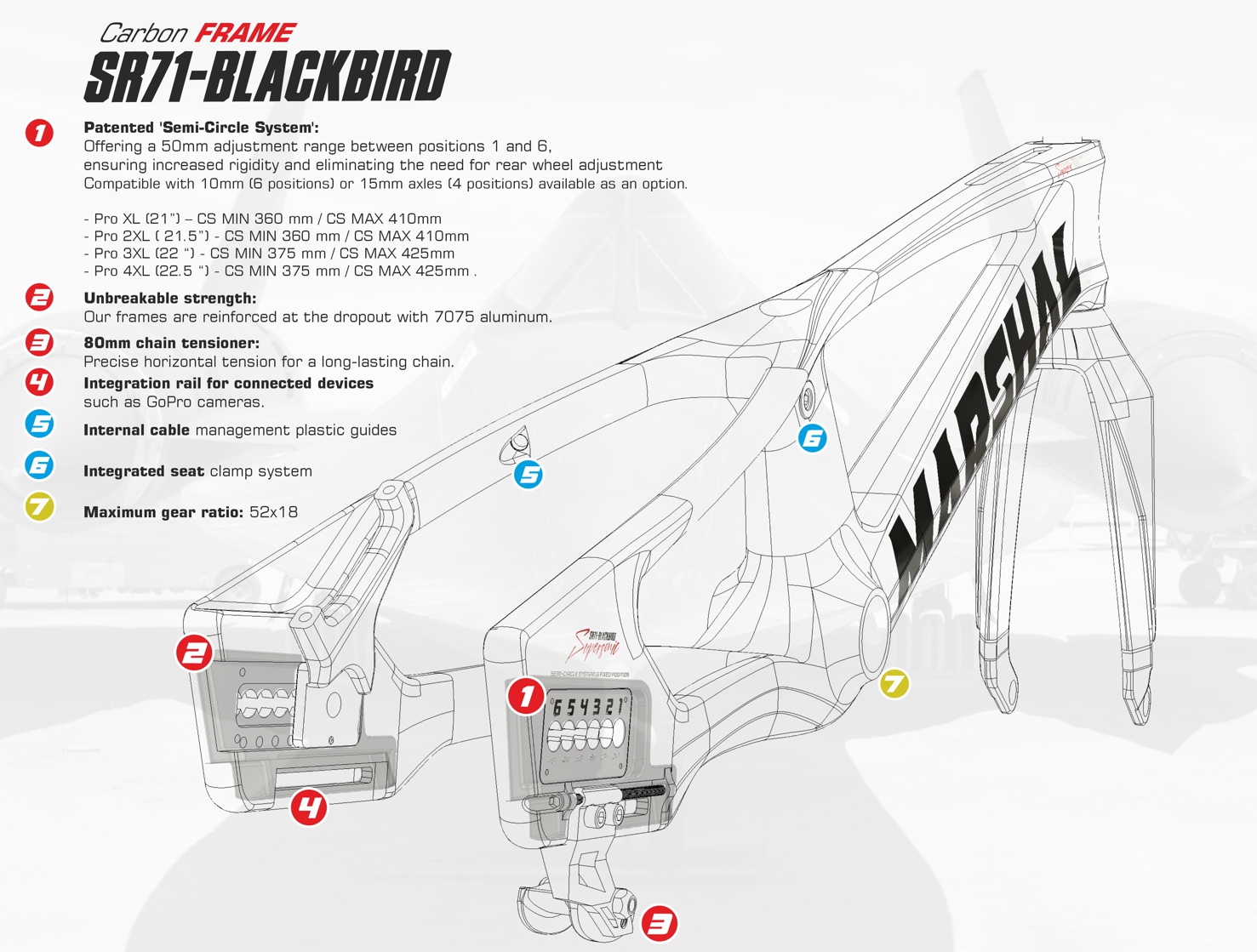

Patented ‘Semi-Circle System’: Provides a 50mm adjustment range across 6 positions for increased rigidity and precise setup without needing to adjust the rear wheel (4 positions in 10mm for Junior and Expert sizes)
Axle Compatibility: Works with 10mm (6 positions) or 15mm axles (4 positions – not compatible for junior and expert sizes). Available as an option.
Unbreakable Strength: The frame is reinforced at the dropout with 7075 aluminum for exceptional durability.
New Chain Tensioner: Ensures precise horizontal tension for a long-lasting chain.
Internal Cable Management: Features plastic guides for a clean and secure cable routing.
Maximum Gear Ratio: 52×18
Sold With the Frame
Option
Weight frame PRO XL = 1,560 Kg (+/- 2%) | 3.307 lbs (+/- 2%)

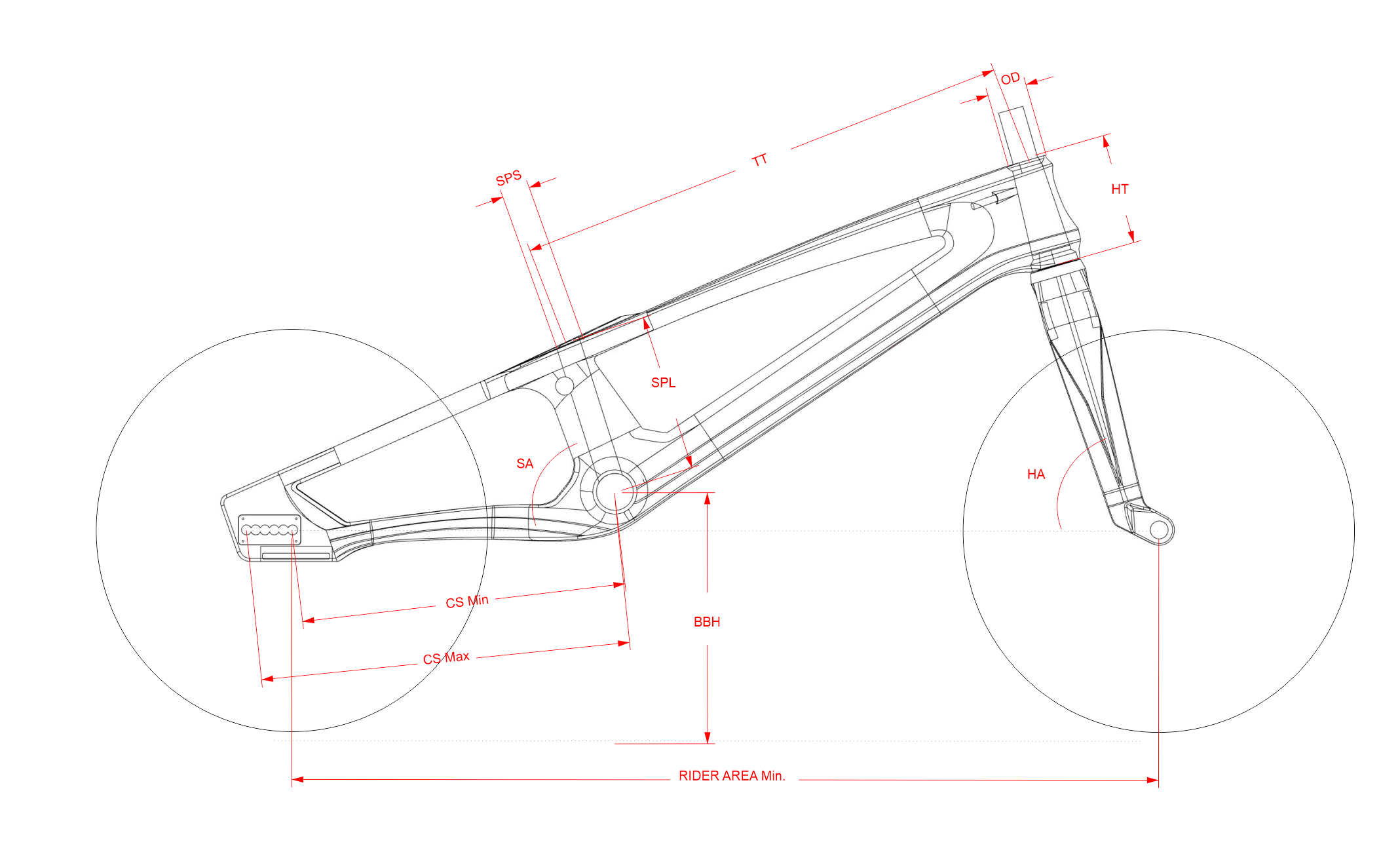

Tailles 20″ RIDER AREA Min TT CS min CS max BBH SA HA OD SPL SP SIZE HT BB Type Junior light 18.8″
478 mm320 mm 352 mm 276 mm 70° 73° intégré conique
OD 1-1/8″ – 1,5″182 mm 27,2 mm 115mm PRESSFIT Expert + 19.7″
500 mm320 mm 352 mm 276 mm 70° 73° intégré conique
OD 1-1/8″ – 1,5″182 mm 27,2 mm 115mm PRESSFIT Pro XL 948 mm 21″
533,5 mm360 mm 410 mm 11,5
292 mm72,5° 74° intégré conique
OD 1-1/8″ – 1,5″175mm 27,2 mm 120mm PRESSFIT Pro XXL 961 mm 21,5″
546 mm360 mm 410 mm 11,5
292 mm72,5° 74° intégré conique
OD 1-1/8″ – 1,5″175mm 27,2 mm 120mm PRESSFIT Pro XXXL 989 mm 22″
558 mm375 mm 425 mm 11,5
292 mm72,5° 74° intégré conique
OD 1-1/8″ – 1,5″175mm 27,2 mm 120mm PRESSFIT Pro XXXXL 1002 mm 22,5″
570 mm375 mm 425 mm 11,5
292 mm72,5° 74° intégré conique
OD 1-1/8″ – 1,5″175mm 27,2 mm 120mm PRESSFIT Tailles 24″ RIDER AREA Min TT CS min CS min BBH SA HA OD SPL SP SIZE HT BB Type Cruiser 956 mm 21,25″
540 mm380 mm 430 mm 12
305 mm69,5° 73° intégré conique
OD 1-1/8″ – 1,5″232 mm 27,2 mm 120mm PRESSFIT Cruiser XL 974 mm 22″
558 mm380 mm 430 mm 12
305 mm69,5° 73° intégré conique
OD 1-1/8″ – 1,5″232 mm 27,2 mm 120mm PRESSFIT
| Weight | 1.500 kg |
|---|---|
| Dimensions | 100 × 20 × 30 cm |
| Size |
JUNIOR Light – 18.8" ,EXPERT Plus -19.7" ,EXPERT XL ,PRO – 20.5" ,PRO XL – 21" ,PRO 2XL – 21.5" ,PRO 3XL – 22" ,PRO 4XL – 22,5" ,CRUISER – 21,25" ,CRUISER XL – 22" |
